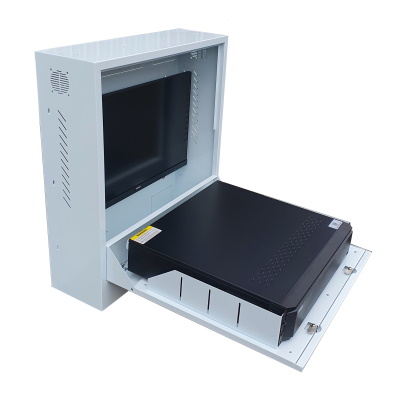

2RU NYX CCTV HUB - Now With Power Board and Fans

• Vertically mounted secure cabinet for CCTV, Alarms, Access control systems etc.
• Dual Lockable Cabinet with Quick clip Monitor bracket and adjustable DVR base.
• Multipurpose Secure Cabinet - Capable of housing Multiple Systems.
• 2 Side Cooling Fan sots (fans optional)
• Fits up to a 24' monitor, with 75/100 VESA mounts.
• 4x2 Cut-outs on rear panel (Power Socket not Included)
• Cable entry on all Sides
• 4 x 4x2 cut outs inside the cabinet.
• 12 Punch outs on 4 Sides
• Rear Panel cable entry slot.
• 4 Outlet SAA PDU
• Fans

  Does not include monitor or NVR


• Specifications

• Load Capacity	Wall Mount: 30kg / Hinged Shelf: 10kg
  Materials	Quality cold rolled steel, powder coated
  Weight	16kg
  Dimensions (W x H x D)	Closed: 583 W x 635 H x 180mm D / Open: 583 x 635 x 712mm
  Wall Mount	4 x Mounting Points
  Wall Mount Dimensions (W x H)	440 x 353mm
  Ventilation	2 x 50mm fan slots ( Fans Optional)
  Cabinet Lock	2 x locks on front door
  Cable Management	12 Punch outs on 4 sides
  Power	4 x Outlet POU
  Monitor	Quick Clip Monitor Mounting bracket- Up to 24" Widescreen
  VESA Mount	75 I 100 - 2 Part Quick Clip on Monitor Brackets
  Power Point	4 x 4x2 Punch-out for Internal Mains Power Supply (4x2 Plug)
  Hinged Shelf	Multiple use - Custom applications to suit users requirements .
